CDS-Series

CDS Series

Powerful Cable Fault Locators

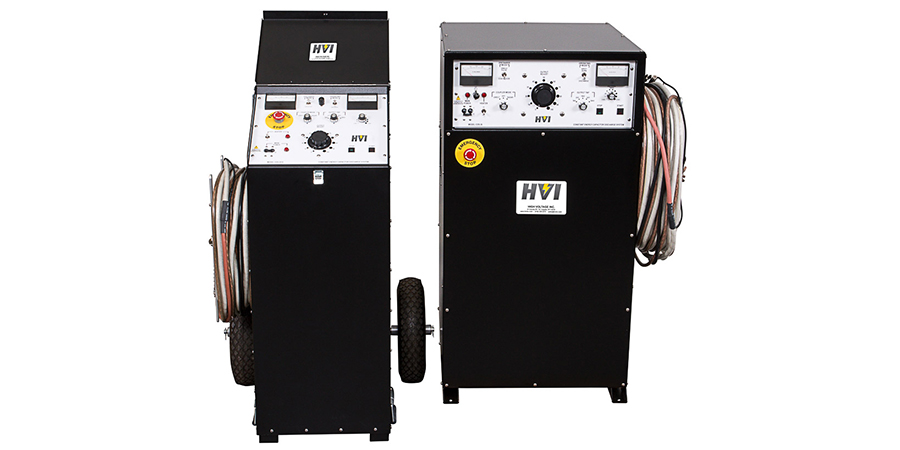

The CDS Series (Controlled Energy Capacitor Discharge Systems) offers some of the most powerful and full-featured fault locators available, including the top network systems thumper in the industry.

  • Three full-joule output voltage settings
  • Three fully variable hipot output voltages
  • The highest burn current available
  • Internal arc reflection & current impulse filter
  • Compatible with nearly all TDR/radar models

CDS-2010U(F)
Output Voltages: 0 – 5/10/20 kV
Joules: 1000 @ 5/10/20 kV
Hipot/Burn Rating: 400 mA

CDS-3616U(F)
Output Voltages: 0 – 9/18/36 kV
Joules: 1600 @ 9/18/36 kV
Hipot/Burn Rating: 280 mA

CDS-3632U(F)
Output Voltages: 0 – 9/18/36 kV
Joules: 3200 @ 9/18/36 kV
Hipot/Burn Rating: 280 mA

Additional Information

Contact HVI sales at 518-329-3275 or sales@hvinc.com for additional information about the CDS Series.
